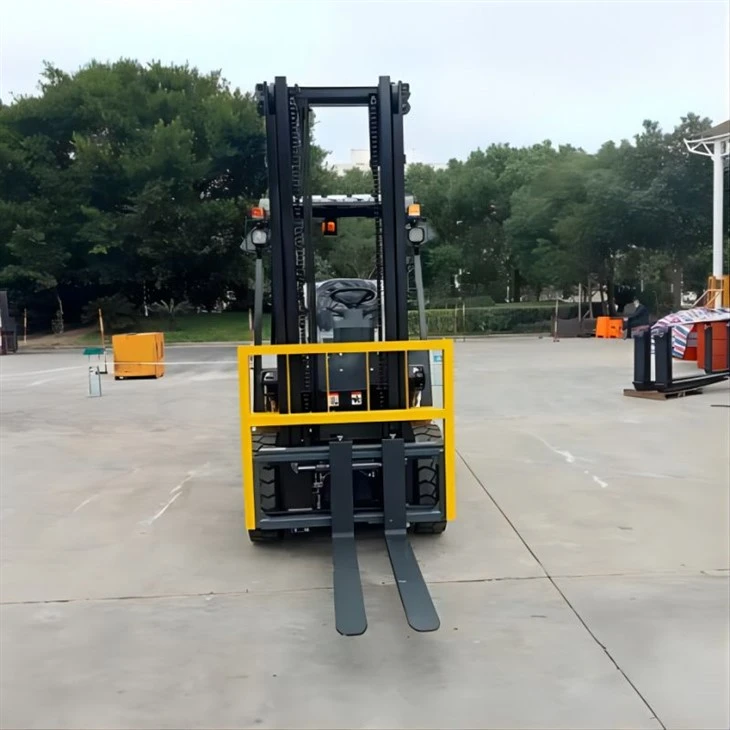

Qhov no 2 tuj me me diesel forklift yog qhov yooj yim thiab ruaj khov, nrog cov kab du thiab zoo nkauj. Nruab nrog ib tug mast nrog ib tug dav teb ntawm lub zeem muag kom paub meej tias tus neeg tsav tsheb muaj ib tug zoo saib. Sab saum toj tus neeg saib xyuas yog ua los ntawm lub zog siab steel phaj nias los tiv thaiv cua thiab nag, muab kev tiv thaiv kev nyab xeeb ntau dua rau tus neeg tsav tsheb thiab ua kom muaj kev nyab xeeb thiab xis nyob hauv kev thauj khoom thiab thauj khoom. Load-sensing tseem ceeb steering hydraulic system tsim, hloov tau yooj yim kauj, mast lifting ceev nce 20%.
Qhov nruab nrab ntawm lub ntiajteb txawj nqus tsim ntawm no me me diesel forklift txhim kho cov log tsheb tuav thiab kev ruaj khov, kev tsav tsheb siab, yooj yim tiv nrog ntau yam kev ua haujlwm! Lub cav, gearbox thiab lwm yam khoom siv tseem ceeb yog los ntawm ISUZU, CUMMIS thiab lwm lub npe nrov hauv tsev thiab thoob ntiaj teb, zoo heev thiab ua haujlwm ntev.
specification
|
General |
Qauv |
|
FD20 |
||
|
Hom fais fab |
|
Diesel |
|||
|
Rated Peev Xwm |
kg |
2000 |
|||
|
Load Center |
mm |
500 |
|||
|
Yam ntxwv |
Nqa Qhov siab |
mm |
3000 |
||
|
Fork Loj |
L×W×T |
mm |
1070×120×40 |
||
|
Mast Tilt Angle |
F/R |
Deg |
6 degree / 12 degree |
||
|
Pem hauv ntej Overhang (Lub log center rau nkhaus ntsej muag) |
mm |
465 |
|||
|
Av Clearance (hauv qab ntawm mast) |
mm |
110 |
|||
|
Zuag qhia tag nrho Dimension |
Ntev mus rau lub ntsej muag ntawm rab rawg (tsis muaj diav rawg) |
mm |
2595 |
||
|
Dav dav |
mm |
1150 |
|||
|
Mast Lowered Height |
mm |
2070 |
|||
|
Mast Extended Qhov siab (nrog backrest) |
mm |
4070 |
|||
|
Overhead Guard Qhov siab |
mm |
2070 |
|||
|
Tig Radius (sab nraum) |
mm |
2310 |
|||
|
Kev ua tau zoo |
Ceev |
Mus ncig teb chaws (Full load) |
km/h |
19 |
|
|
Lifting (tag nrho load) |
mm/s |
530 |
|||
|
Max.Gradeability (Tsis muaj load / tag nrho load) |
% |
20 |
|||
|
Chassis |
Lub log |
Pem hauv ntej |
mm |
7. 00-12-12PR |
|
|
Qab |
mm |
6. 00-9-10PR |
|||
|
Wheelbase |
mm |
1600 |
|||
|
Kev pabcuam hnyav |
kg |
3590 |
|||
|
Fais fab & Kis |
Roj teeb |
Voltage / Muaj peev xwm |
V/Ah |
12/80 |
|
|
Cav |
Qauv |
|
C240 |
||
|
Tsim |
|
ISUZU |
|||
|
Rated tso zis / rpm |
kws |
35.4/2500 |
|||
|
Rated torque/rpm |
N·m |
137.7/1800 |
|||
|
No.of cylinder |
|
4 |
|||
|
Pobzeb × Stroke |
mm |
86×102 |
|||
|
Kev khiav tawm |
cc ua |
2369 |
|||
|
Roj Tank Peev Xwm |
L |
60 |
|||
|
Kev sib kis |
Hom |
|
Hydraulic |
||
|
Theem |
FWD/RVS |
|
1/1 |
||
Cov ntsiab lus ntawm LTMG diesel forklift
Peb lub tuam txhab
LTMG Co., Ltd. yog tsim nyob rau hauv 2001, yog ib tug niaj hnub loj-scale machinery manufacturing tuam txhab uas tsim logistics tuav cov khoom thiab siv machinery khoom. Peb lub tuam txhab yog lub hauv paus loj hauv Xiamen thiab cov chaw tsim khoom lag luam hauv Shandong npog tag nrho thaj tsam ntawm 100, 000 squaremeters.Lub Hoobkas muaj 8 ua tiav cov kab ntau lawm rau cov tshuab, nrog rau a20, 000 cov zis txhua xyoo.
Tam sim no, LTMG Machinery Group (LTMG) tau ua lag luam nrog ntau tshaj 100 lub teb chaws thiab tau ua tiav zoo ntawm kev sib koom ua lag luam, cov khoom lag luam, kev loj hlob ntawm kev lag luam ntim, kev pabcuam zoo thiab tus nqi ntawm cov neeg siv khoom loj hlob. LTMG txog tam sim no muaj ntau dua 30 tus neeg muag khoom tshwj xeeb hauv ntiaj teb. Cov khoom tau txais kev qhuas thiab kev lees paub ntawm cov neeg siv khoom hauv tsev thiab txawv teb chaws.
FAQ
1. Koj puas yog cov chaw tsim khoom?
A. Peb yog cov chaw tsim khoom thiab Tam sim no, Forklift ntau lawm puag muaj 120, 000 square meters ntau lawm puag thiab 15000 units forklifts txhua xyoo muaj peev xwm.
2. Kuv tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Los ntawm txhua txoj kev, peb zoo siab tos txais koj tuaj txog, Ua ntej koj tawm ntawm koj lub tebchaws, thov qhia rau peb paub. Peb yuav qhia koj txog txoj kev thiab npaj sijhawm tuaj tos koj yog tias ua tau.
3. Koj puas tuaj yeem muab luv nqi rau kuv?
A: Cov luv nqi yog muaj, tab sis peb yuav tsum pom qhov muaj nuj nqis tiag tiag, peb muaj tus nqi sib txawv raws li qhov sib txawv, ntau npaum li cas luv nqi txiav txim siab los ntawm qhov ntau, ntxiv rau, peb cov nqi sib tw heev hauv kev lag luam.
4. Koj puas nrhiav tus neeg sawv cev?
Yog, peb tab tom nrhiav tus neeg sawv cev thoob plaws ntiaj teb, thov hu rau peb kom sib tham ntxiv.
