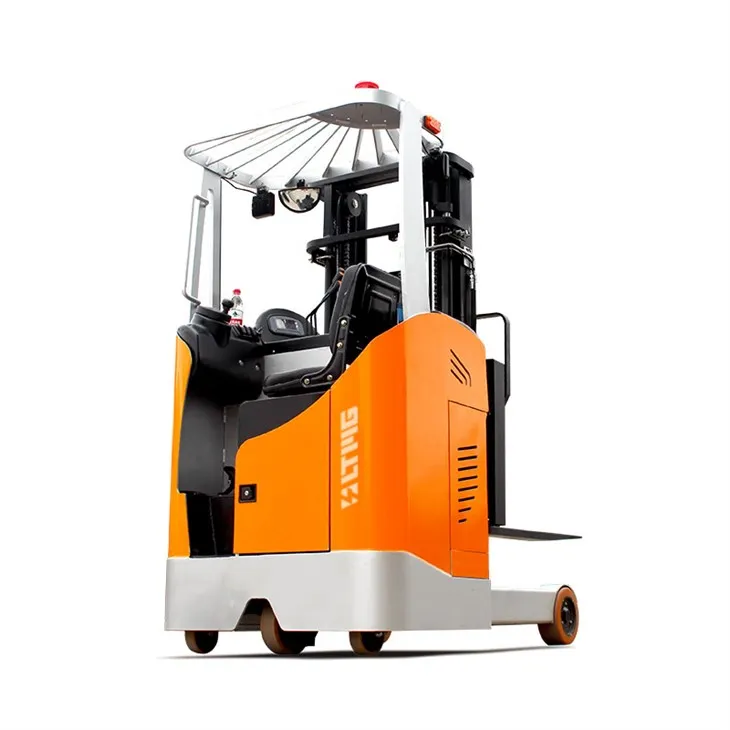

Zaum-down Reach Truck Roj teeb ua haujlwm forklift thiab nqaim aisle ncav cuag lub tsheb yog ob qhov kev tsim kho tshiab hauv ntiaj teb ntawm cov khoom siv tuav. Cov tshuab no tau hloov pauv txoj hauv kev uas cov khoom khaws cia thiab thauj mus rau hauv lub tsev khaws khoom lossis chaw xa khoom.
Kev ncav cuag lub tsheb forklift muaj kev ua kom muaj zog thiab ua haujlwm ntau dua piv rau cov forklifts ib txwm muaj. Nws cov qauv tsim qauv tso cai rau cov neeg ua haujlwm taug kev los ntawm txoj kab nqaim thiab qhov chaw nruj nrog qhov yooj yim. Qhov no ua rau nws zoo tagnrho rau siv hauv cov tsev khaws khoom nrog cov khoom ntim siab thiab cov chaw hauv pem teb tsawg. Nrog nws txoj kev ncav cuag, nws tseem tuaj yeem tuav pallets thiab thauj khoom ntawm qhov siab dua.
Ib yam li ntawd, txoj kev nqaim nqaim mus txog lub tsheb muaj lub chassis nqaim uas tuaj yeem txav mus rau hauv txoj kev nqaim dua. Lub tshuab no muaj peev xwm ncav cuag ntau dua thiab tuaj yeem nqa cov khoom thauj mus rau qhov siab dua. Nws txoj kev siv nqaim tso cai rau kev siv qhov chaw zoo dua, tso cai rau cov tsev khaws khoom khaws khoom ntau dua hauv tib cheeb tsam.
Ob leeg ncav cuag lub tsheb forklifts thiab nqaim aisle mus txog cov tsheb thauj khoom tau nruab nrog cov yam ntxwv muaj kev nyab xeeb zoo xws li cov khoom siv thauj khoom, cov tshuab tiv thaiv kev sib tsoo, thiab kev tswj hwm ergonomic kom cov neeg ua haujlwm muaj kev nyab xeeb thiab ua rau txoj haujlwm yooj yim dua. Tsis tas li ntawd, cov tshuab no yog ib puag ncig tus phooj ywg, nrog lub zog-txuag nta uas txo cov roj noj thiab emissions.
Hauv kev xaus, ncav cuag tsheb forklifts thiab nqaim aisle ncav cuag cov tsheb thauj khoom yog cov khoom siv tshiab uas tau hloov pauv cov khoom siv kev lag luam. Lawv muab kev ua tau zoo, kev nyab xeeb, thiab kev phooj ywg ib puag ncig, ua rau lawv muaj peev txheej zoo rau cov lag luam nrhiav kev txhim kho lawv cov haujlwm.
Technical parameters
| Qauv | FRB 25 | |||
| Kev ua tau zoo | Muaj peev xwm thauj khoom siab tshaj plaws | kg | 2500 | |
| Chaw thau khoom | Q | mm | 500 | |
| Max nqa qhov siab | H3 | mm | 1600 | |
| Mus txog deb | E | mm | 640 | |
| Lub kaum sab xis (up / down) | S | 3/5 | ||
| Kev ceev ceev (tsis muaj load) | km/h | 8 | ||
| Kev ceev ceev (nrog load) | km/h | 7 | ||
| Lifting ceev (tsis muaj load) | mm/h | 270 | ||
| Lifting ceev (nrog load) | mm/h | 150 | ||
| Ascend slope peev xwm (tsis muaj load) | % | 15 | ||
| Ascend slope peev xwm (nrog load) | % | 8 | ||
| Luj (tsis muaj roj teeb) | kg | ~3050 | ||
| Qhov ntev | Zuag qhia tag nrho ntev ntawm ncej (mast tsis ncav cuag) | L | mm | 1990 |
| Zuag qhia tag nrho ntev (mast tsis ncav cuag) | L1 | mm | 2520 | |
| Zuag qhia tag nrho ntev (mast ncav cuag) | L2 | mm | 3080 | |
| Zuag qhia tag nrho dav ntawm ncej | B | mm | 1270 | |
| Overhead guard qhov siab | mm | 2190 | ||
| Mast txo qhov siab | H1 | mm | 2200 | |
| Max qhov siab (mast nqa nrog backrest) | H2 | mm | 2650 | |
| Wheelbase | Y | mm | 1610 | |
| diav rawg dav | mm | 100/40/1070 | ||
| diav rawg dav dav | mm | 210-830 | ||
| Fork txo qhov siab | W1 | mm | 40 | |
| Hloov lub vojvoog | Ua | mm | 1890 | |
| Min sib tshuam aisle dav | Asts | mm | 2790 | |
| Lub log | Pem hauv ntej log | mm | 267*114 | |
| Tsav lub log | mm | 340*130 | ||
| Cov khoom siv log | polyurethane | |||
| Cov khoom siv hluav taws xob | Tsav hom tsav tsheb | AC lub cev muaj zog | ||
| Rated tso zis | kws | 5 | ||
| Hoist lub cev muaj zog | DC lub cev muaj zog | |||
| Rated tso zis | kws | 6.3 | ||
| Roj teeb | Qhov hluav taws xob | V | 48 | |
| Muaj peev xwm | AH | 440 | ||
| Qhov hnyav | kg | 486 | ||
qhov zoo
Original Curtis Controller:
Curtis maub los yog cov khoom siv zoo tshaj plaws uas tau ua pov thawj kom ntseeg tau thiab ruaj khov, kom ntseeg tau tias lub forklift ua haujlwm tau zoo thiab tsis tu ncua. Qhov no feature tau tsim nrog tus neeg teb xov tooj hauv siab, muab qhov yooj yim thiab intuitive neeg siv interface uas ua kom pom kev ua tau zoo thiab kev nyab xeeb.
EPS:
Lub Sij-down Reach Truck Forklift equip nrog EPS lub kauj + ib qho kev hloov pauv hom + ntau yam cuab yeej siv nrog tsav lub log tso saib + lub ncoo mos;
Roj teeb:
Sab-rub roj teeb, yooj yim los hloov thiab kho lub roj teeb.
