Khoom Description

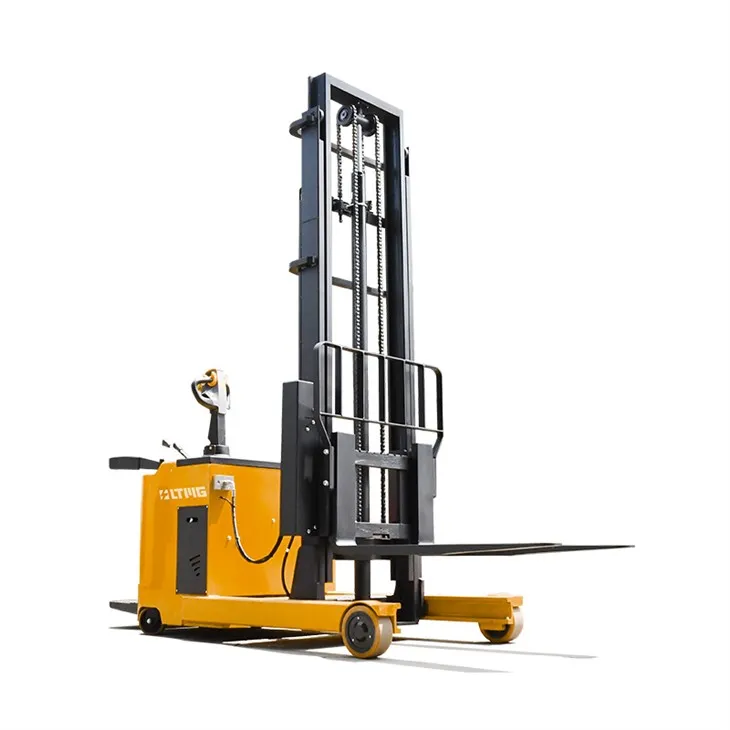

Qhia txog Mini 1 Tuj Reach Forklift Standing Hom - lub zog thiab kev daws teeb meem rau tag nrho koj cov khoom siv xav tau! Lub forklift no zoo tagnrho rau cov tsev khaws khoom uas muaj qhov chaw txwv thiab nqaim aisles, vim nws muaj cov qauv tsim uas tso cai rau kev yooj yim maneuverability hauv qhov chaw nruj.
Lub forklift boasts lub peev xwm ib tuj, ua rau nws haum rau ntau yam kev siv, nrog rau kev txav pallets thiab lwm yam khoom hnyav. Txawm hais tias koj tab tom ua haujlwm hauv tsev rau khoom, lub Hoobkas, lossis lub chaw faib khoom, Mini 1 Ton Reach Forklift Standing Type yog qhov kev xaiv zoo tshaj plaws rau txhua yam koj xav tau ntawm cov khoom siv.
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm lub forklift no yog nws qhov yooj yim thiab yooj yim ntawm kev siv. Cov qauv tsim qauv txhais tau hais tias tus neeg teb xov tooj tuaj yeem yooj yim rau hauv thiab tawm ntawm lub forklift, ua rau nws zoo meej rau cov haujlwm uas yuav tsum tau ua kom nquag plias. Tsis tas li ntawd, lub forklift lub intuitive tswj xyuas kom meej thiab yooj yim khiav lag luam, txawm rau cov neeg tshiab rau forklifts.
Mini 1 Ton Reach Forklift Standing Hom kuj tseem muaj ntau yam kev nyab xeeb los xyuas kom meej tias tus neeg teb xov tooj thiab txhua tus neeg nyob ib puag ncig muaj kev nyab xeeb txhua lub sijhawm. Los ntawm qhov chaw nres tsheb thaum muaj xwm ceev mus rau lub horn thiab lub teeb kev nyab xeeb, lub forklift no yog tsim los nrog kev nyab xeeb hauv siab.
Hauv cov ntsiab lus, Mini 1 Ton Reach Forklift Standing Type yog ib qho kev daws teeb meem thiab txhim khu kev qha rau tag nrho koj cov khoom siv xav tau. Nrog nws cov qauv tsim, ib-tuj peev xwm, thiab cov neeg siv-phooj ywg tswj, lub forklift no zoo meej rau warehouses, factories, thiab faib chaw. Txawm hais tias koj tab tom txav pallets, hnyav hnyav, lossis lwm yam khoom siv, Mini 1 Ton Reach Forklift Standing Type yog lub cuab yeej zoo tshaj plaws rau txoj haujlwm.
Cov khoom parameter
| Yam ntxwv | Qauv | TRS 10 | ||
| Hom fais fab | Hluav taws xob | |||
| Hom kev ua haujlwm | sawv hom | |||
| Load peev | Q (kg) | 1000 | ||
| Chaw thau khoom | C (mm) | 500 | ||
| Load nrug, nruab nrab ntawm tsav qag rau diav rawg | X (mm) | 155 | ||
| Wheelbase | Y (mm) | 1335 | ||
| Mus txog deb | L (mm) | 500 | ||
| Qhov hnyav | Kev Pabcuam hnyav (nrog roj teeb) | kg | 1875 | |
| Qhov ntev | Mast Qhov siab, Lowered | h1 (mm) | 1845 | |
| Nqa qhov siab | h3 (mm) | 2500 | ||
| Max.height thaum nqa | h4 (mm) | 3470 | ||
| Fork ntsej muag min.ground clearance | h13 (hli | 35 | ||
| Fork tilting angle Pem hauv ntej / nram qab | 3/5 | |||
| Lub cev ntev | 12 (mm) | 1615 | ||
| Zuag qhia tag nrho ntev | L1 (mm) | 1734/2276 | ||
| dav dav | b1 (mm) | 1034 | ||
| Fork loj | s/e/l (mm) | 35/100/1070 | ||
| Fork Spread | b5 (mm) | 210-680 | ||
| Min. av clearance | m2 (mm) | 70 | ||
| Aisle Dav rau Pallet 1000 * 1200 crossways | Ast (mm) | 2681 | ||
| Aisle Dav rau Pallet 1200 * 1000 crossways | Ast (mm) | 3083 | ||
| Min. tig vojvoog (tsis muaj / nrog lub platform) | Qhov (mm) | 1652/2053 | ||
| Tsav Tsav | kws | 1.5 | ||
| Lift Tsav | kws | 2.2 | ||
| Hom roj teeb | Lead Acid | |||
| Roj teeb voltage / nominal muaj peev xwm | V/Ah | 24/210 | ||
| Charger | V/A | 24/30 | ||
Cov khoom qhia meej
Cov khoom pov thawj
Cov khoom tawm tswv yim
Khoom Description
Q: Lub Mini 1 Tuj Reach Forklift Standing Hom puas tuaj yeem siv rau hauv qhov chaw nqaim?
Q: Puas yog Mini 1 Tuj Reach Forklift Standing Hom yooj yim rau kev ua haujlwm?
Q: Yuav tsum muaj kev saib xyuas zoo li cas rau Mini 1 Tuj Reach Forklift Standing Hom?
Cim npe nrov: mini 1 tuj ncav cuag forklift sawv hom, Tuam Tshoj mini 1 tuj ncav cuag forklift sawv hom manufacturers
